Package Content:

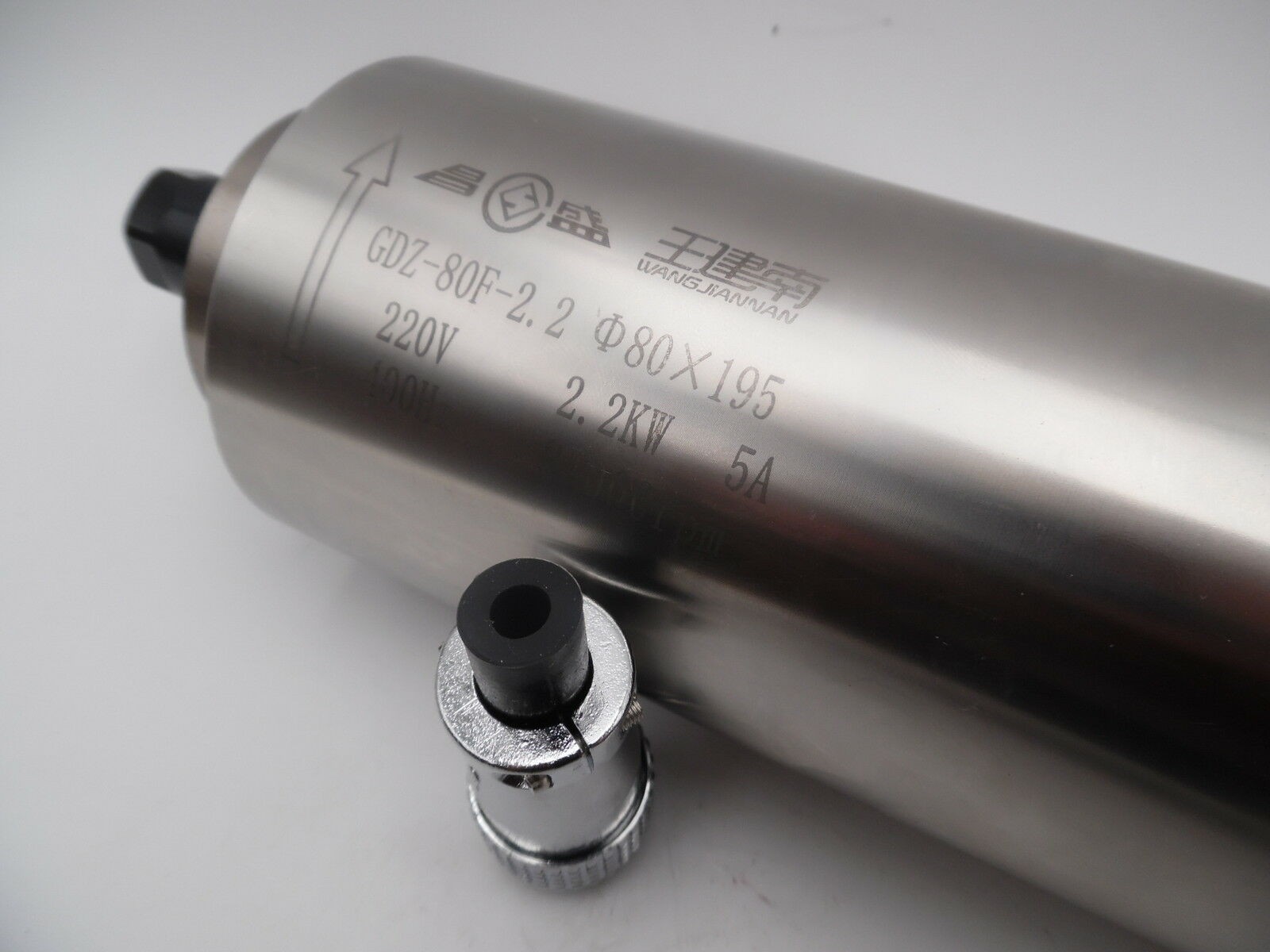

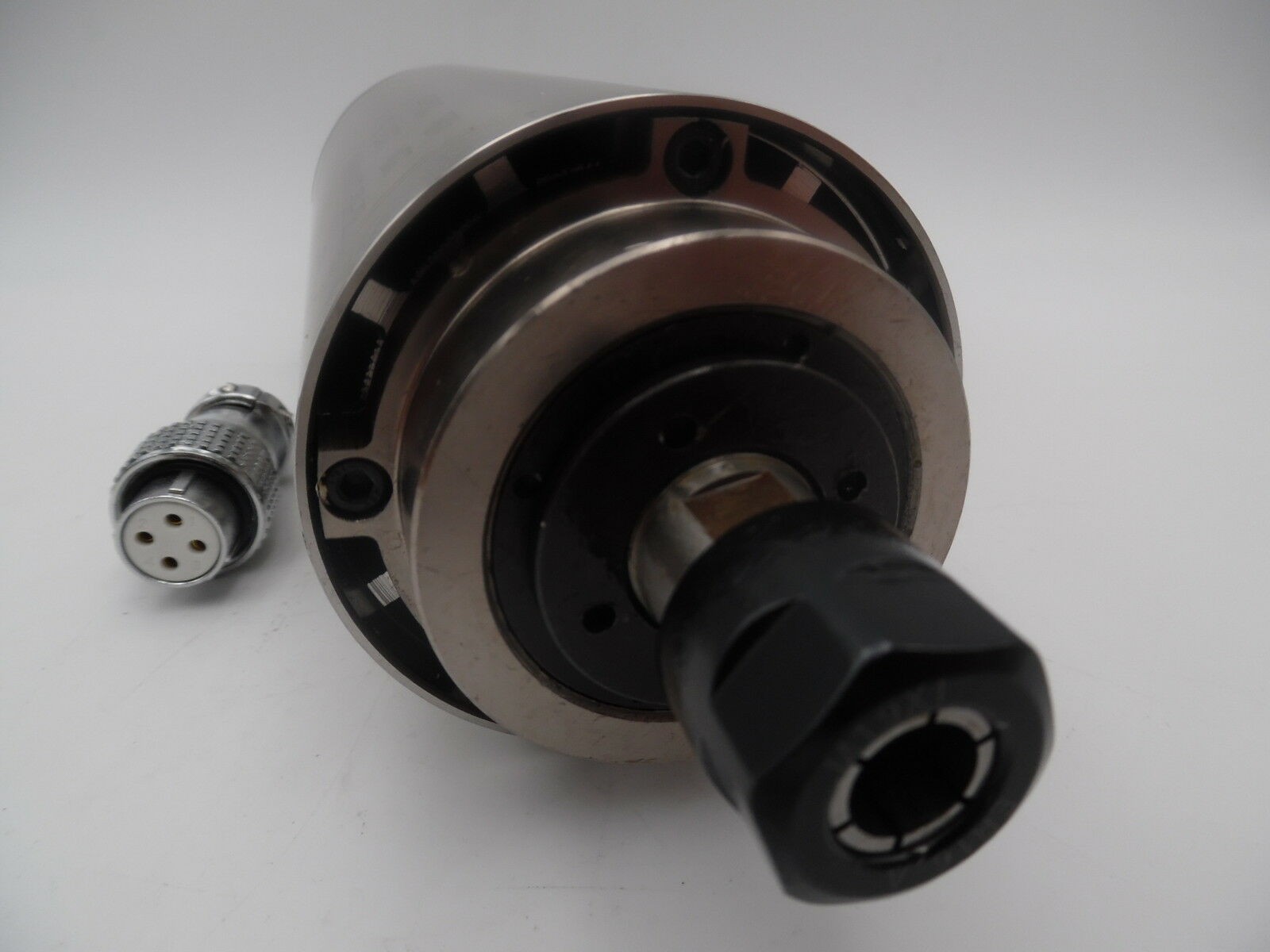

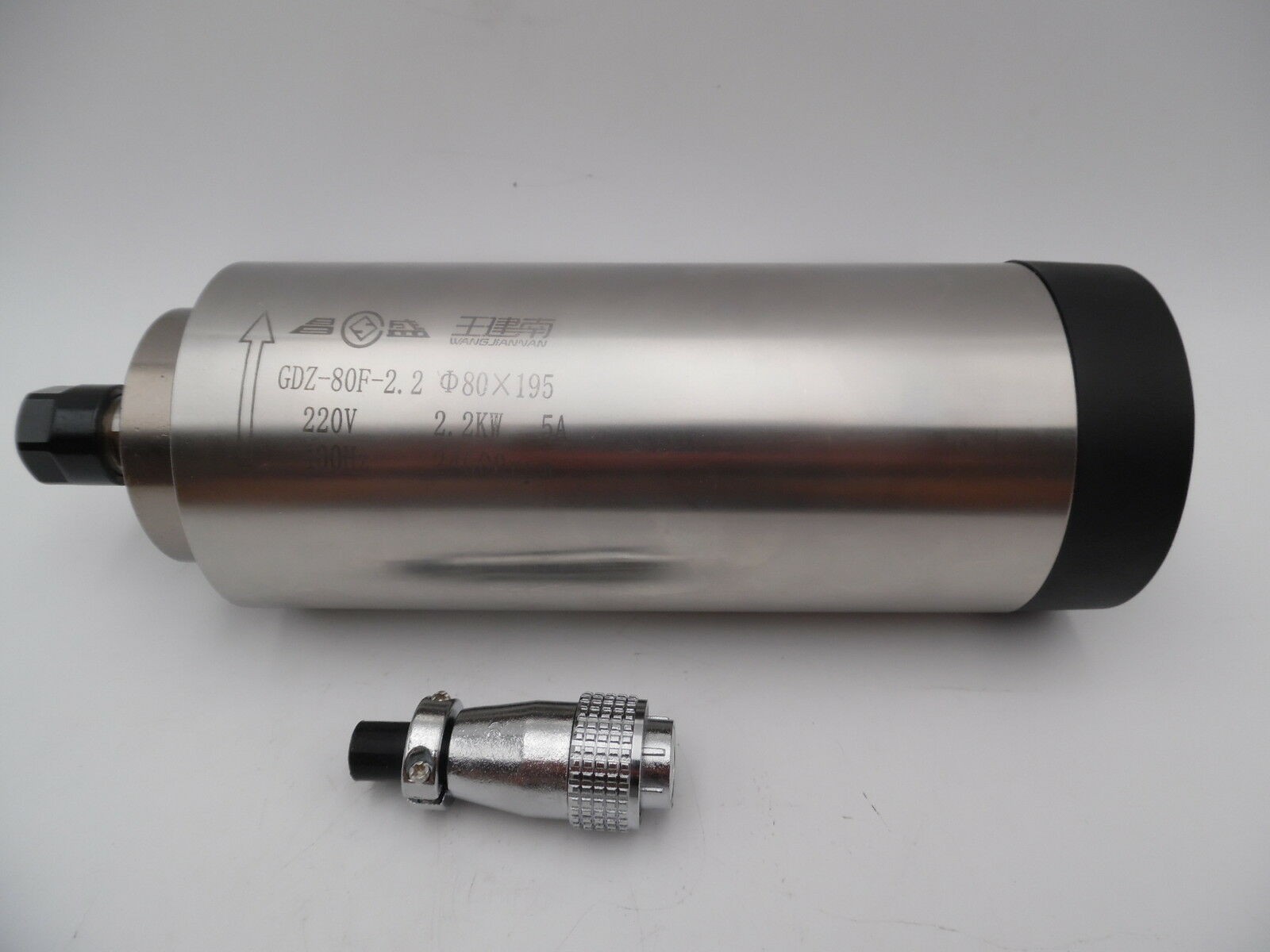

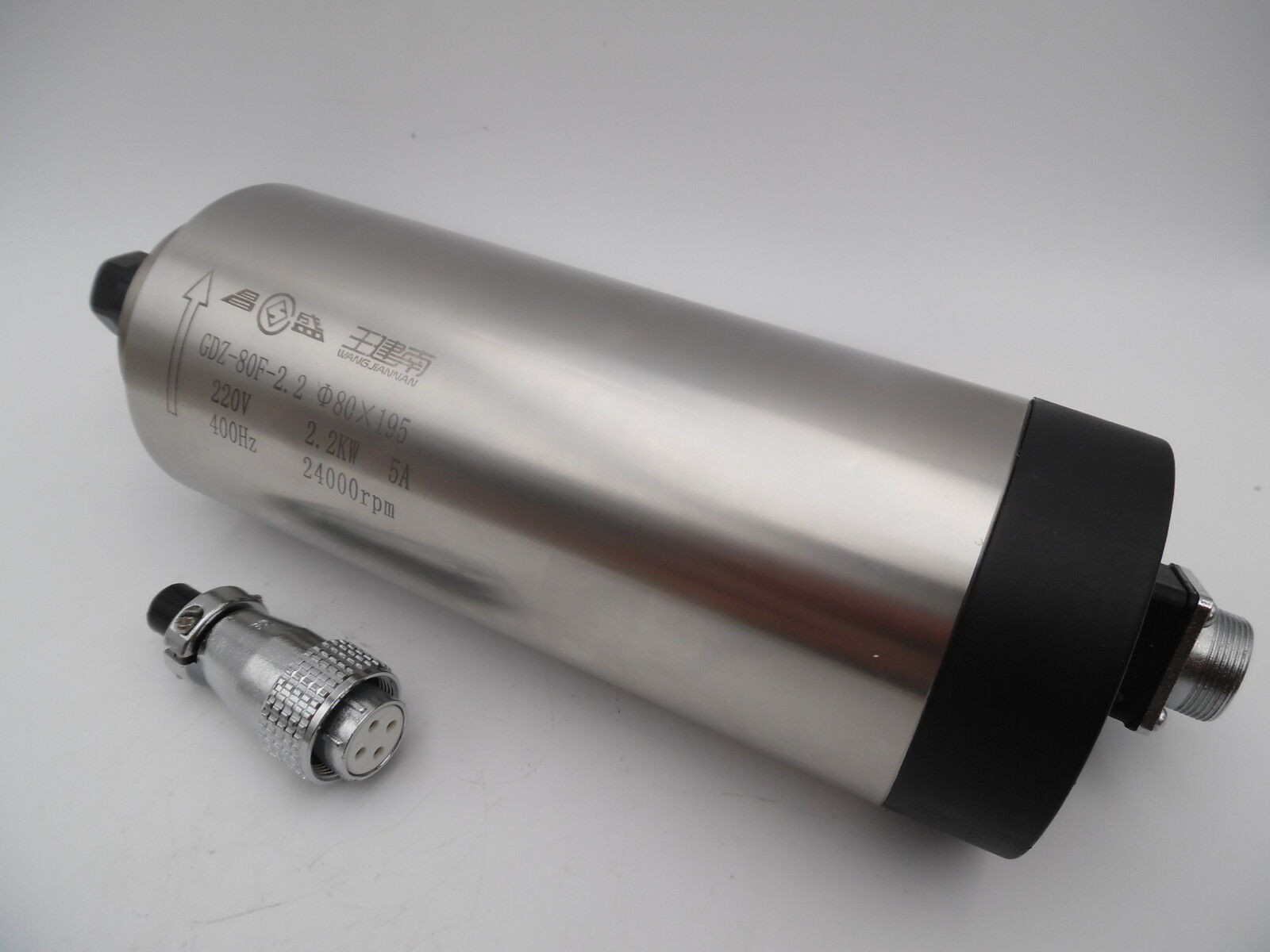

1*2.2kW Spindle Motor: GDZ80-2.2F (195mm)
1*3.7KW sunfar VFD Variable Frequency Drive: E550-2S0037L
1* 80mm mounting bracket
Spindle Motor Specification:
Providing the default Collet ER16 6mm, if not please do contact us for a better solution.
Specifications
|
Type |
GDZ80-2.2F |
|
Product type |
High-Speed Constant Torque Motorized Spindle Motor for CNC engraving machines |
|
Rev |
24000rpm |
|
Power |
2.2KW |
|
Diameter |
Φ80mm |
|
Voltage |
220 |
|
Current |
5A |
|
Frequency |
400Hz |
|
Cool |
air-cooled |
|
Bearing type |
2*7004 & 2*7002 |
|
Lubricate |
grease |
|
collet(mm) |
ER16 6mm (default) |
|
repair time |
bearing(half year), spindle(one year) |
|
Brand |
Changsheng(Made in china) |
VFD Specification:
|
Model |
E550-2S0037L |
|
Power (KW) |
3.7KW |
|
Input Voltage(V) |
1-phase AC 220V ±20% 50/60Hz |
|
Output Voltage(V) |
0~220v |
|
Output Current(A) |
16.5A |
|
Output Frequency (Hz) |
0~1000Hz |
|
Origin& Warranty&brand |
China & One year&sunfar |
Bracket Specifications
|
Type |
Φ80mm Bracket |
|
Material & Origin |
Cast Aluminium& China |
