220V 1.27NM AC Servo Motor Drive kits 400W Delta Servo Motor 3000RPM 60mm CNC Machinery Motion Control

item ID#: ECMA-C20604RS+ASD-B2-0421-B
Item condition: New and Original
No reviews Write a review
Weight: 4 Kg(s)
6 available/ 5 sold
Start from: 1 Unit(s)
Manufactured by: Delta
Wholesale Price: 398.00
Quantity: Unit(s)
  • DHL Recommended Shipping
  • Stock Lead Time

Estimate Shipping Costs

  • Description
  • Download
  • Reviews
  • Write a Review

220V 1.27NM AC Servo Motor Drive kits 400W Delta Servo Motor 3000RPM 60mm Oil Seal with 3M cable



the expert of cnc parts(104).jpg



Contact information:
email: service@fasttobuy.com
our working time: EST 9:00AM ~ 6:00 PM

AC Servo Motor ECMA-C20604RS available, if need other choices, contact us directly. we can also supply ECMA-C20604CS, ECMA-C20604RC and ECMA-C20604SS.



Motor Specifications:


Model

ECMA-C20604RS

Product Name

Electronic Commutation Motor

Corresponding Servo Motor

ASD-B2-0421-B

Servo Type

AC Servo

Rated Voltage

220V

Encoder Type

Incremental, 17-bit

Motor Frame Size

60mm

Type of Shaft Diameter and Oil Seal

Keyway(with fixed screw holes)  w/o Brake with Oil Seal

Shaft Diameter

S=14mm

Rated Power Output

400W

Rated torque (N-m)*1

1.27

Max. torque (N-m)

3.82

Rated Speed

3000 rpm

Max. speed

5000 rpm

Rated current (A)

2.60

Max. current (A)

7.80

Power rating (kW/s)(without brake)

57.6

Rotor moment of inertia(× 10 -4 kg.m2 ) (without brake)

0.277

Mechanical time constant(ms) (without brake)

0.53

Torque constant-KT (N-m/A)

0.49

Voltage constant-KE (mV/(r/min))

17.4

Armature resistance (Ohm)

1.55

Armature inductance (mH)

6.71

Electrical time constant (ms)

4.30

Insulation class

Class A (UL), Class B (CE)

Insulation resistance

> 100 M ohm, DC 500 V

Insulation strength

AC 1500V, 60 sec

Weight (kg)  (without brake)

1.6 Kg

Max. radial shaft load (N)

196

Max. thrust shaft load (N)

68

Vibration grade (μm)

15

Operating temperature

0~40  degree centigrade

Storage temperature

-10~80  degree centigrade

Operating humidity

20% to 90% RH (non-condensing)

Storage humidity

20% to 90% RH (non-condensing)

Vibration capacity

2.5G

IP Rating

IP65

Approvals

CE  UL




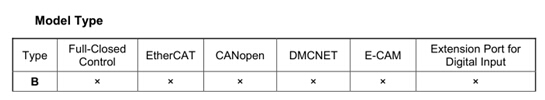

Drive Specifications:


Model

ASD-B2-0421-B

Product Name

AC SERVO Drive

Corresponding Servo Motor

ECMA-C*0604?S (S = 14mm)

ECMA-C*0604?H (H = high inertia)

ECMA-CM0604PS (S = 14mm)

ECMA-C*0804?7 (7 = 14mm)

ECMA-E*1305?S (S = 22mm)

ECMA-G*1303?S (S = 22mm)

Series

ASD-B2

Rated Power

400W

Power

Supply

Phase / Voltage



Single-phase: 200 ~ 255VAC, 50/60Hz ±5%

Continuous Output Current

2.6 Arms

Cooling method

Natural Air Circulation

Encoder Resolution /Feedback Resolution

17-bit (160000 p/rev)

Main Circuit Control

SVPWM Control

Tuning Modes

Auto/Manual

Dynamic Brake

-

Position

Control

Mode

Max. Input Pulse

Frequency

Line driver: Max. 500Kpps (low speed)/Max.4Mpps(high speed) Open collector: Max. 200Kpps

Pulse Type

Pulse + Direction, A phase + B phase, CCW pulse + CW pulse

Command Source

External pulse train

Smoothing Strategy

Low-pass filter

Electronic Gear

Electronic gear N/M multiple N: 1 ~ (2 26 -1)/M:1 ~ (2 31 -1)

1/50 < N/M < 25600

Torque Limit Operation

Set by parameters

Feed Forward Compensation

Set by parameters

Speed

Control

Mode

Analog

Input

Command

Voltage

Range

0 ~ ±10 VDC

Input

Resistance

10 KΩ

Time

Constant

2.2 us

Speed Control Range*1

1 : 5000

Command Source

External analog signal /Internal parameters

Smoothing Strategy

Low-pass and S-curve filter

Torque Limit Operation

Set by parameters or via Analog input

Responsiveness

Characteristic

Maximum 550Hz

Speed Fluctuation Rate *2(at rated speed)

0.01% or less at load fluctuation 0 to 100%

0.01% or less at power fluctuation ±10%

0.01% or less at 0 to 50 degree centigrade ambient temperature fluctuation

Torque

Control

Mode

Analog

Command

Input

Voltage

Range

0 ~ ±10 VDC

Input

Resistance

10 KΩ

Time

Constant

2.2 us

Command Source

External analog signal / Internal parameters

Smoothing Strategy

Low-pass filter

Speed Limit Operation

Parameter Setting or via Analog input

Analog Monitor Output

Monitor signal can set by parameters (Output voltage range: ±8 V)

Communication Interface

RS-232/RS-485

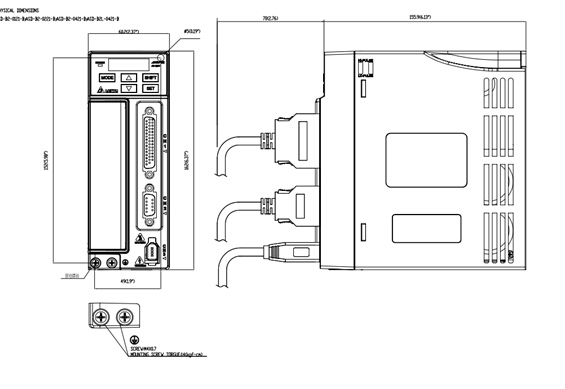

ASD-B2-0421-B external dimension (mm)

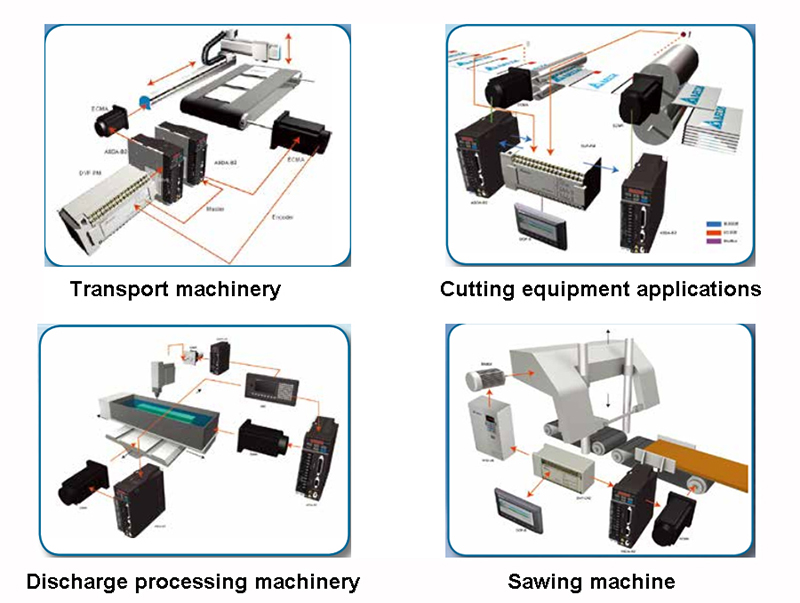

 Scene application
