200V 100W 0.1KW Yaskawa Sigma 5 Servo System SGDV-R90A01B+SGMJV-01ADE6S New

Three-phase 200V

Servopack model: SGDV-****

R70A

R90A

1R6A

2R8A

3R8A

5R5A

7R6A

120A

180A

200A

330A

470A

550A

590A

780A

Applicable Servomotor Max. Capacity

KW

0.05

0.1

0.2

0.4

0.5

0.75

1.0

1.5

2.0

3.0

5.0

6

7.5

11

15

Continuous Output Current

A_rms

0.66

0.91

1.6

2.8

3.8

5.5

7.6

11.6

18.5

19.6

32.9

46.9

54.7

58.6

78

Max. Output Current

A_rms

2.1

2.9

6.5

9.3

11

16.9

17

28

42

56

84

110

130

140

170

Main Circuit

min^-1

Three-phase 200 to 230 VAC+10% to -15% 50/60 Hz

Control Circuit

min^-1

Single-phase 200 to 230 VAC+10% to -15% 50/60 Hz

Voltage

200V

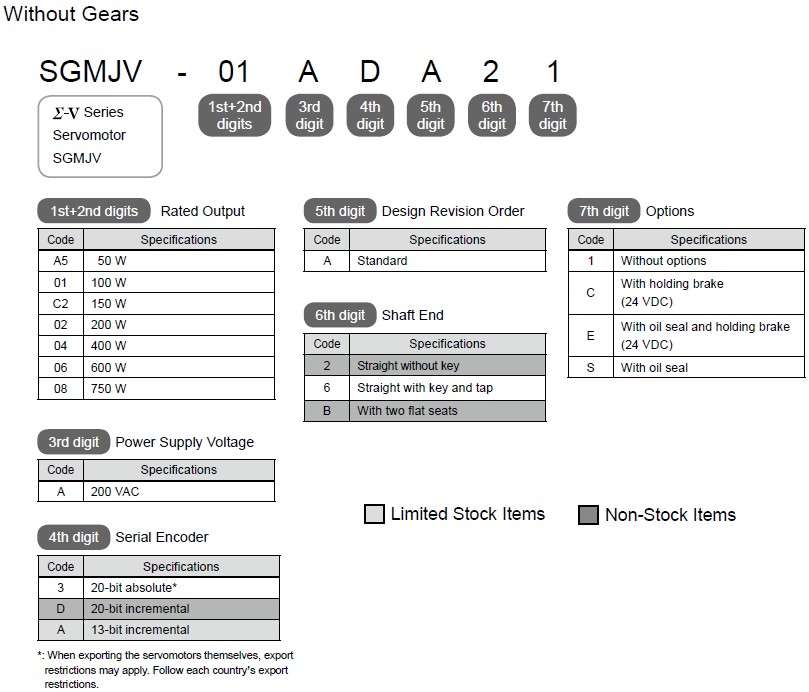

Servo motor model: SGMJV-***

A5A

01A

C2A

02A

04A

06A

08A

Rated Output

W

50

100

150

200

400

600

750

Rated Torque

N.m

0.159

0.318

0.477

0.637

1.27

1.91

2.39

Instantaneous Peak Torque

N.m

0.557

1.11

1.67

2.23

4.46

6.69

8.36

Rated Current

A_rms

0.61

0.84

1.6

1.6

2.7

4.2

4.7

Instantaneous Max. Current

A_rms

2.1

2.9

5.7

5.8

9.3

14.9

16.9

Rated Speed

min^-1

3000

Max. Speed

min^-1

6000

Torque Constant

N.m/A_rms

0.285

0.413

0.327

0.435

0.512

0.505

0.544

Rotor Moment of Inertia

×10^-4 kg.m²

0.0414

(0.0561)

0.0665

(0.0812)

0.0883

(0.103)

0.259

(0.323)

0.442

(0.506)

0.667

(0.744)

1.57

(1.74)

Rated Power Rate

kW/s

6.11

15.2

25.8

15.7

36.5

54.7

36.3

Rated Angular Acceleration

rad/ s²

38400

47800

54100

24600

28800

28600

15200

Applicable SERVOPACK

SGDV-****

R70*

R90*

1R6A,2R1F

1R6A,2R1F

2R8*

5R5A

5R5A
