1~4 Axis CNC controller 16DI 8DO 3.5inch TFT 400KHz Servo Stepper CNC Controller for CNC Lathe Milling Machine

1. Shipping list


 CNC motion controller


 USB Cable

 1 Pack

 Screws and Nuts

2. Main Functions


1~4 Axis


3.5 inch color LCD, pixel 320*240

Interpolation period


Single axis linear interpolation output pulse


Circular interpolation output pulse


4 axis linear interpolation output pulse


Analog Spindle Output

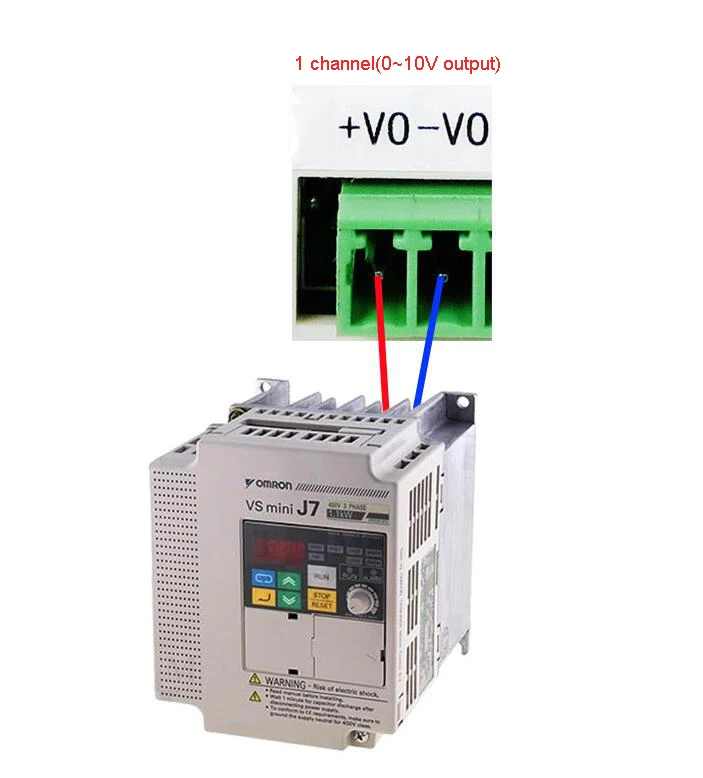

1 channel 0-10v analog spindle(VFD/ Servo Drive)


1μm 10μm 100μm


16 point input/8 point output

 3. Technical Specifications


Pulse max=400KHZ

4 feeding axis

16 input port and 8 output port

supporting importing files from USB stick


G code

 Min data unit

 0.001 mm

 Max data size

 ± 99999.999mm

 Max Speed

 9000mm/min (pulse is 0.001mm)

Max Program Line


Max Program



 1-4 (X,Y, Z,C)

X,Y,Z,C axis can conduct linear interpolation, X,Y can do circular interpolation

External Manual Operation

motor clockwise and counter clockwise spinning, start, pause, alert and stop


USB Importing program and boot picture

Isolated I/O port
RAM 128M
Isolated I/O port

G code and M code

One panel MPG
English panel display & manual


One year

4. Application fields

Slid platform, milling machine, drilling machine, textile, weld, machine hand, robot, etc

5. Technical Support

(1) Products from the factory to provide one year free after sales warranty, life time free technical support.

(2)  free English manual and Software can be available.

6. Product Show

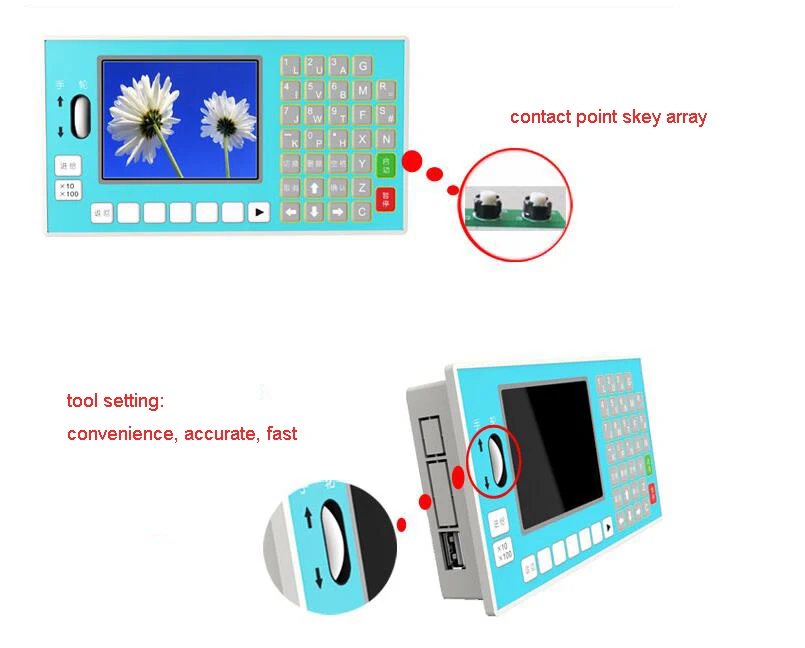

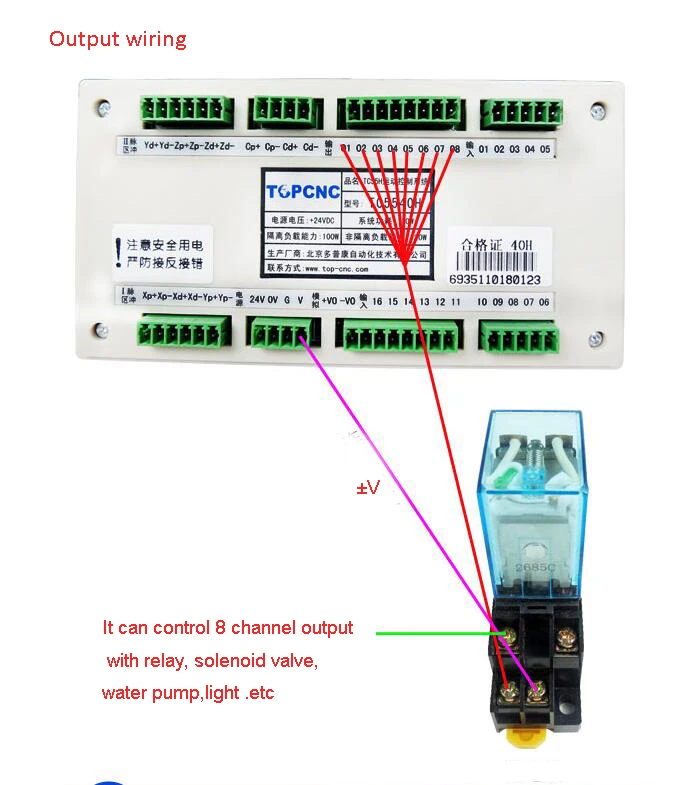

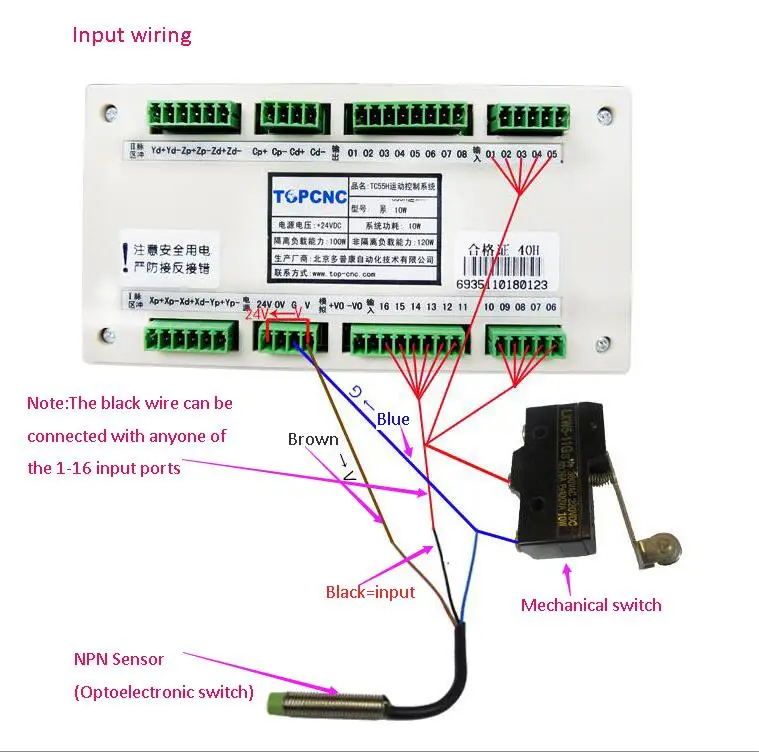

TC5510H (1)TC5510H (2)TC5510H (3)TC5510H (4)TC5510H (5)TC5510H (6)
