100mm RS232 10kg 5mm/sec Motorized Lifting Platform for Microscope/Flaw Detector

item ID#: PT-GD402
  • Item condition: New and Original
  • 100 available/ 0 sold
  • Start from: 1 Unit(s)
  • Weight: 5.5 Kg(s)
  • DHL Recommended Shipping
  • Stock Lead Time
Delivery:
3-7 Days Details
Payment:
Details
Guarantee:
1Year Quality Assurance Details
Returns:
7 days unconditional return, the buyer bear the return freight Details

Estimate Shipping Costs

Quantity: Unit(s)
US$477.00 + Shipping Cost
    • Description
    • Download
    • Product Reviews
    • Write a Review
     100mm RS232 10kg 5mm/sec Motorized Lifting Platform  for Microscope/Flaw Detector


    Motorized Lab Jacks:PT-GD402

    (1)   Equipped with stepper motor and RS232 interface, the company independent research and  development of the controller can be automated control

    (2)  Smooth movement, carrying large, long life, low noise.

    (3)  With the limit function, the initial zero function, facelift servo motor, the installation of rotary encoder, to accept the product restructuring and tailor-made.

    Specifications

    Item Number

    PT-GD402

    Travel Range

    90mm

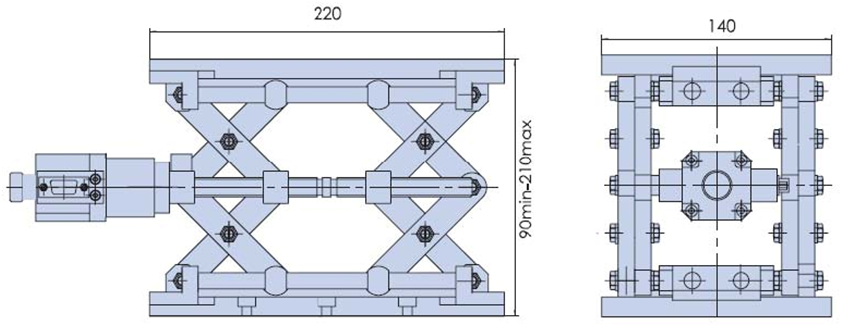

    Dimension of Platform

    220mm x 140mm

    Drive Mechanism

    Grinding Screw

    Travel Guide

    Slide Rail

    Stepper Motor (1.8°)

    SST42D2121 - Stepping Motor with 2-Phases & 1.8° of Step Angle

    Material – Finish

    Aluminum Alloy - Black-Anodized

    Load Capacity

    10Kgs

    Weight

    4.7kgs

    Minimum Adjust Distance:

    5μm Non-MS Driver; 0.25μm/Pulse, 20MS Driver

    Max Velocity

    5mm/sec

    Repeatability

    10μm

    Backlash

    4μm

    Lost Motion

     3. Application

    Applications: Electronic equipment. Laser equipment. Automation equipment. CNC equipment. Laser equipment and other automation equipment.

    When selecting the electric rotary table and the electronic rotary table, you must first determine whether you need manual adjustment or motor control, and then determine the load size, displacement accuracy, resolution, desired dimensions, and quantity.
