10 buttons: 2Transmitter+1 Receiver 12V and 18~65V radio remote control for crane

item ID#: F23-BBS 2+1 12v 18~65v
Item condition: New and Original
No reviews Write a review
Weight: 3 Kg(s)
9 available/ 1 sold
Start from: 1 Unit(s)
Manufactured by: Uting
Wholesale Price: 206.00

Please Choose:

Quantity: Unit(s)
  • DHL Recommended Shipping
  • Stock Lead Time

Estimate Shipping Costs

  • Description
  • Download
  • Reviews
  • Write a Review

10 buttons: 2Transmitter+1 Receiver 12V and 18~65V radio remote control for crane


Application

Bridge Crane / Overhead crane / Chain Hoist / Monorails / Concrete Pump Truck / Mobile Lifting / Tower Crane

Package Listing

2PC* Transmitter

1PC* Receiver

1PC* Dust bag

Parameters

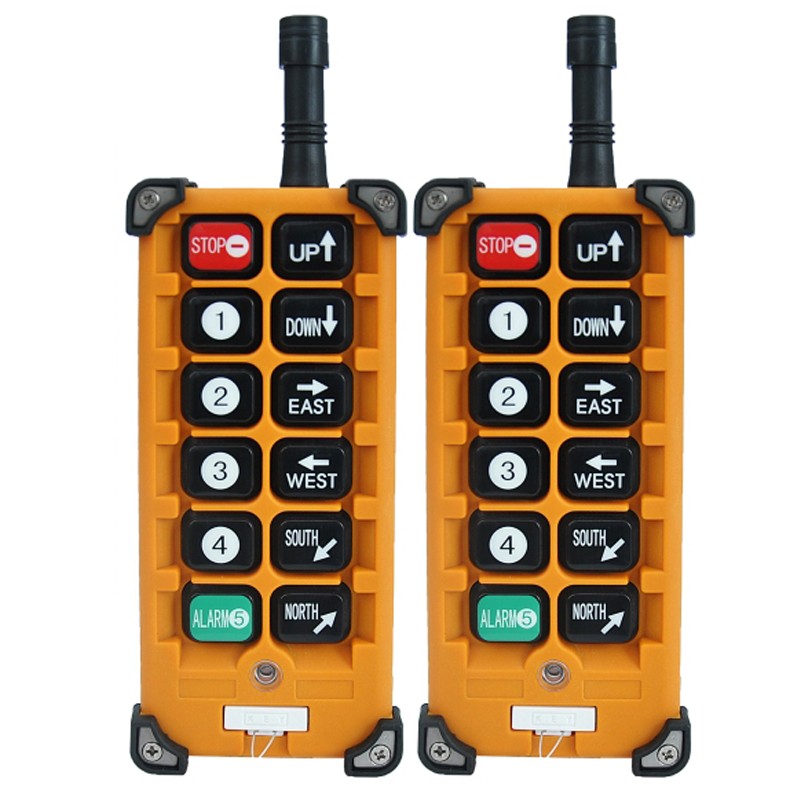

Transmitter

Number of function buttons

10 x one-step buttons (Up/ Down, East/ West, South/ North, Function1, Function2, Function3, Function4)

Other buttons

1 x STOP impact switch, 1 x Start button

Material

Glass-Fiber PA

Dimension

164*75*46mm (6.5*3*1.8 in.)

Weight

280G (without batteries)

Protection Class

IP65

Frequency range

VHF: 310~331MHz; UHF: 425~446MHz

Transmitter power

Less than or equal to 10dBm

Safety code

32bits (4.3 billion)

Temperature range

-40~85 degrees Celsius (-40~185 degrees Fahrenheit)

Control distance

Approx100m (200 meters is customized)

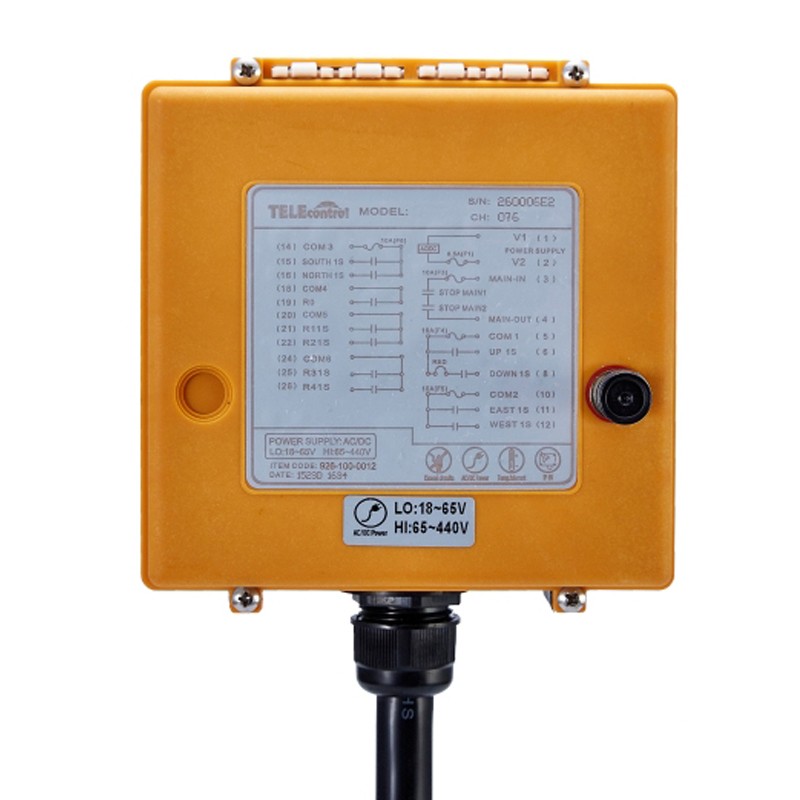

Receiver

Receiver power supply

12v/18-65V AC/DC

Please select the voltage you need

Material

Glass-Fiber PA

Dimension

168*166*93mm (6.6*6.5*3.7 in.)

Weight

780G

Protection Class

IP65

Temperature range

-40~85 degrees Celsius (-40~185 degrees Fahrenheit)

Frequency range

VHF: 310~331MHz; UHF: 425~446MHz

Receiver sensitivity

-110dBm

Cable length

1.65 meters

Safety code

32 bits (4.3 billion)

Control distance

Approx100m (200 meters is customized)

Features

l Up/down, East/ West, South/ North can be programmed to interlock or non-interlock.

l Transmitter and receiver labels use laser engraving technology. Waterproof, wear-resistant, clear writing, avoiding the important information is missing in harsh environments as codes and other issues. To provide more superior service for future use.

l Special button materials and high-quality switches

l Power supply alarm indicator


F
eatures

l Up/down, East/ West, South/ North can be programmed to interlock or non-interlock.

l Transmitter and receiver labels use laser engraving technology. Waterproof, wear-resistant, clear writing, avoiding the important information is missing in harsh environments as codes and other issues. To provide more superior service for future use.

l Special button materials and high-quality switches

l Power supply alarm indicator

We also offer products in the voltage range of 65V~110V ~ 440V AC/DC. Contact us if needed. Select the appropriate product based on the operating voltage.







Note

The LED on the front of the transmitter indicates the condition of the batteries.  It will flash green during operation if the battery power is sufficient and will flash red if the battery power is low. If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.
