US$
10 buttons: 1Transmitter+1 Receiver 12V and 18~65V radio remote control for crane
Application
Bridge Crane / Overhead crane / Chain Hoist / Monorails / Concrete Pump Truck / Mobile Lifting / Tower Crane
Package Listing
1PC* Transmitter
1PC* Receiver
1PC* Dust bag
Parameters
|

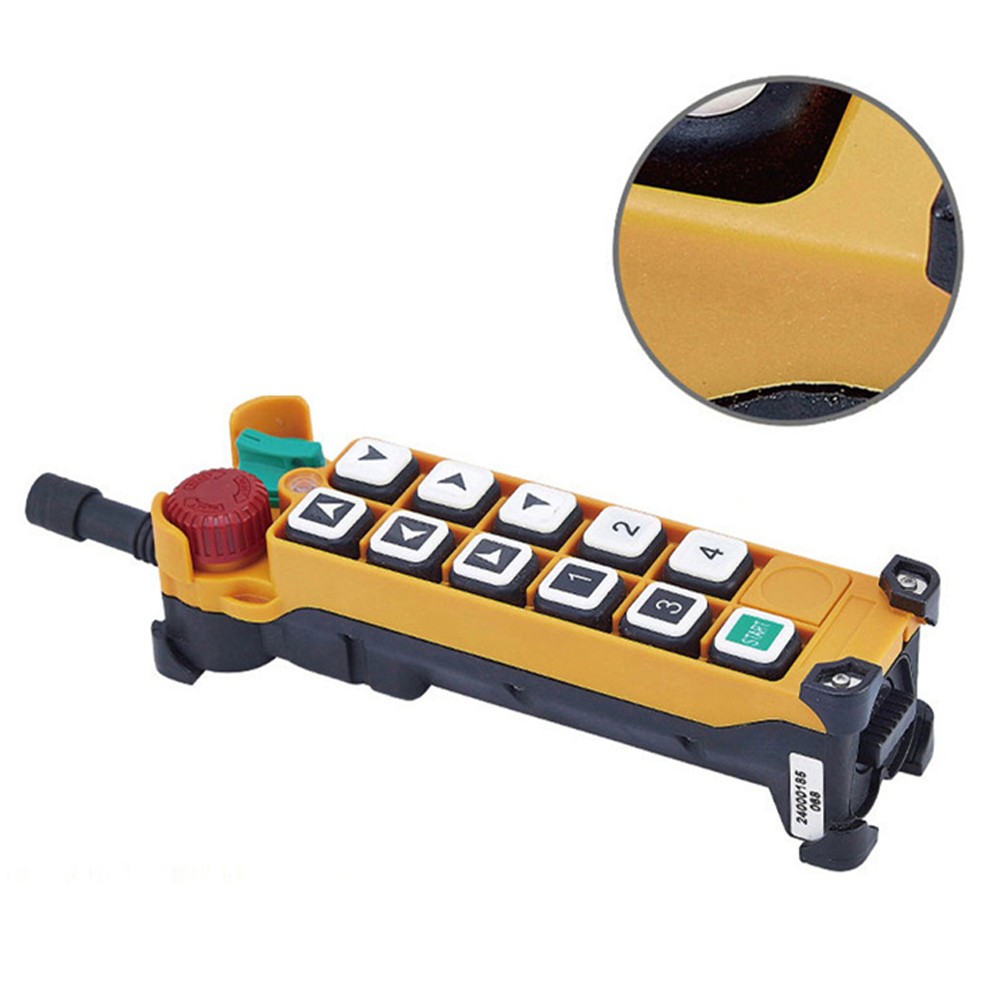

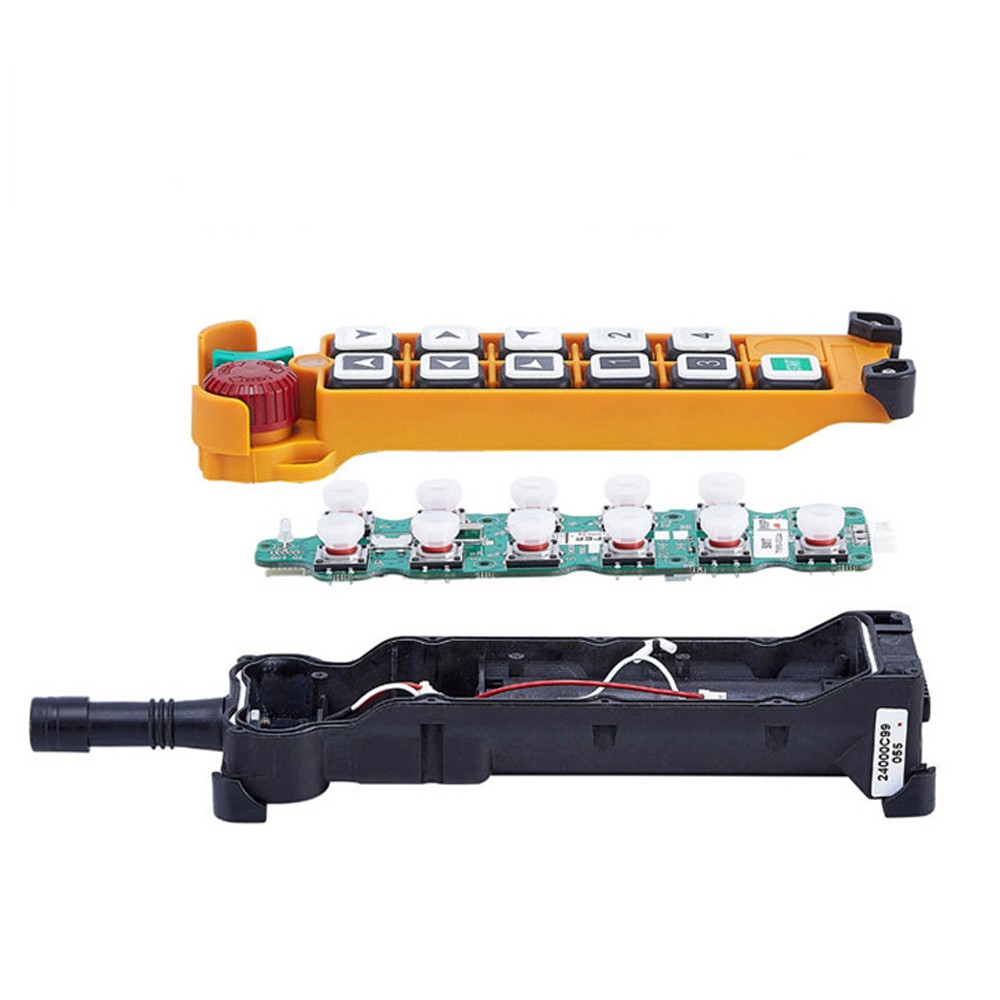

Transmitter |
|
|
Number of function buttons |
10 x one-step buttons (Up/ Down, East/ West, South/ North, Function1, Function2, Function3, Function4) |
|
Other buttons |

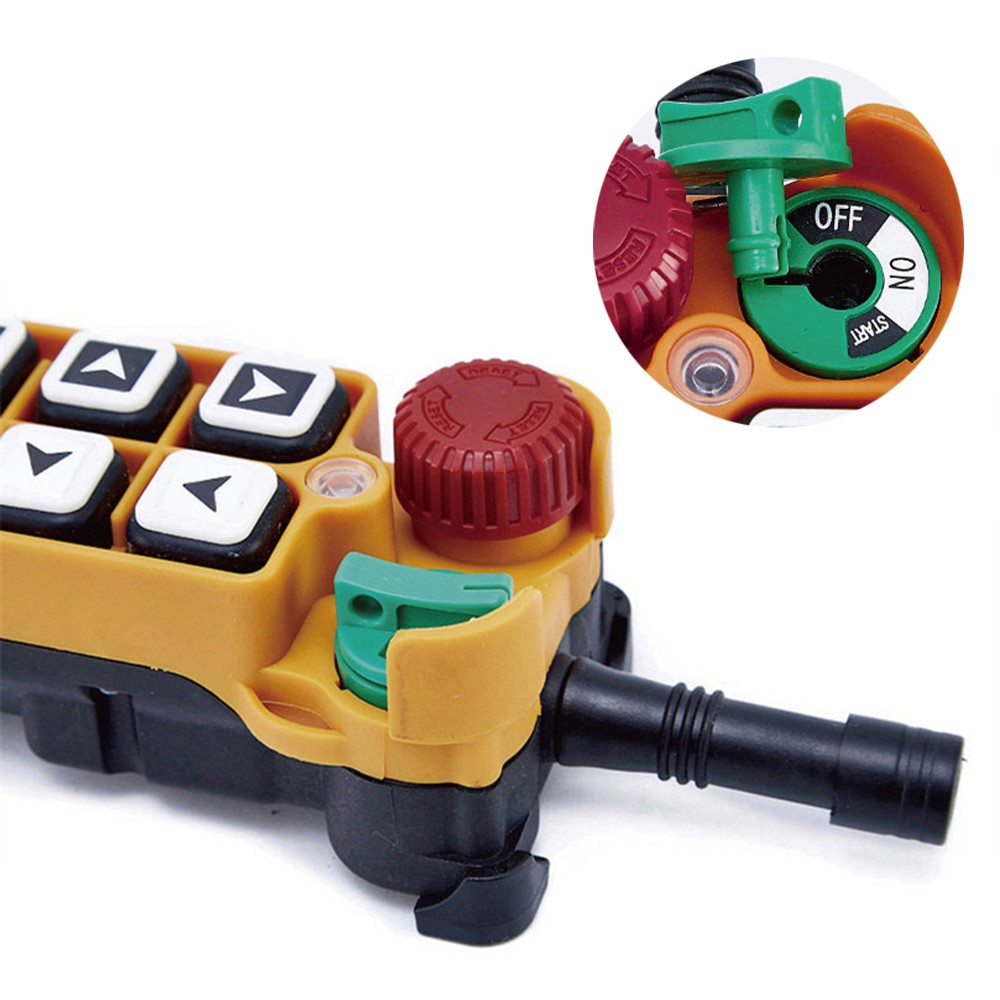

1 x STOP impact switch, 1 x Start button |
|
Material |
Glass-Fiber PA |
|
Dimension |
164*75*46mm (6.5*3*1.8 in.) |
|
Weight |
280G (without batteries) |
|
Protection Class |
IP65 |
|
Frequency range |
VHF: 310~331MHz; UHF: 425~446MHz |
|
Transmitter power |
Less than or equal to 10dBm |
|
Safety code |
32bits (4.3 billion) |
|
Temperature range |
-40~85 degrees Celsius (-40~185 degrees Fahrenheit) |
|
Control distance |
Approx100m (200 meters is customized) |
|

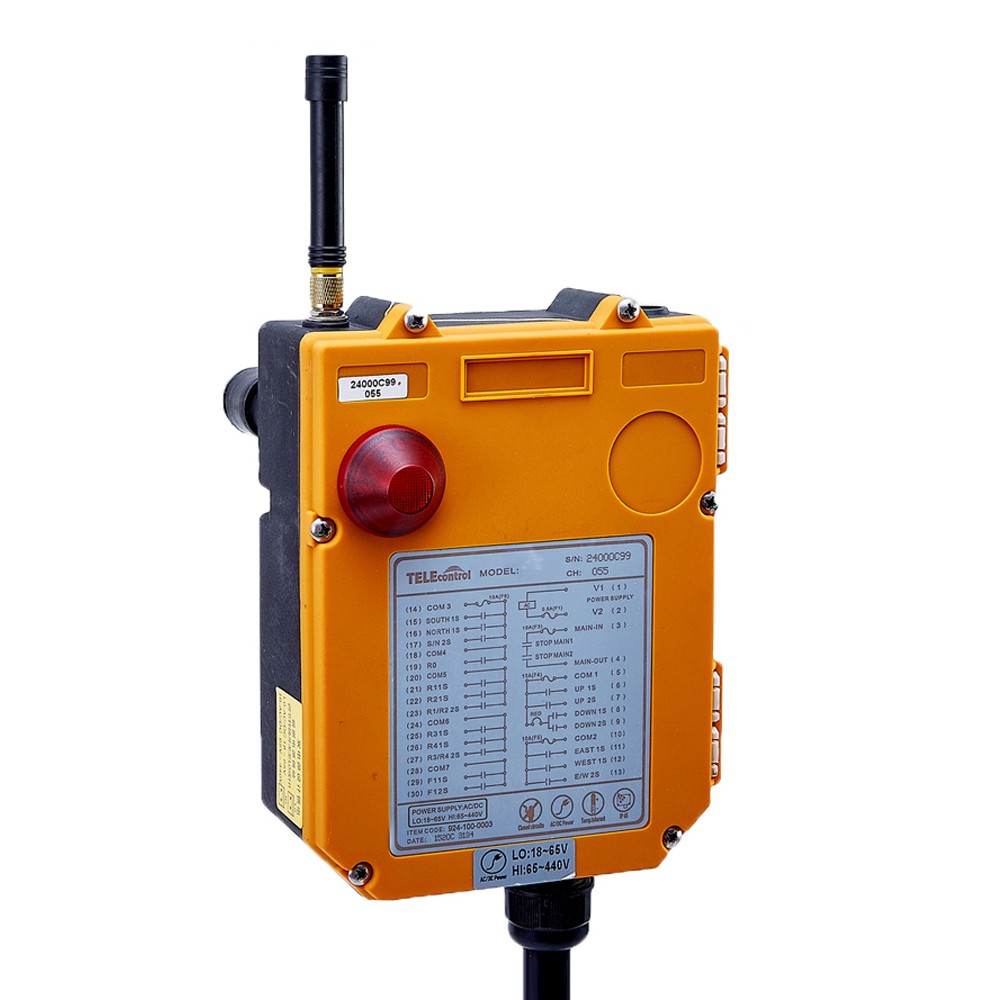

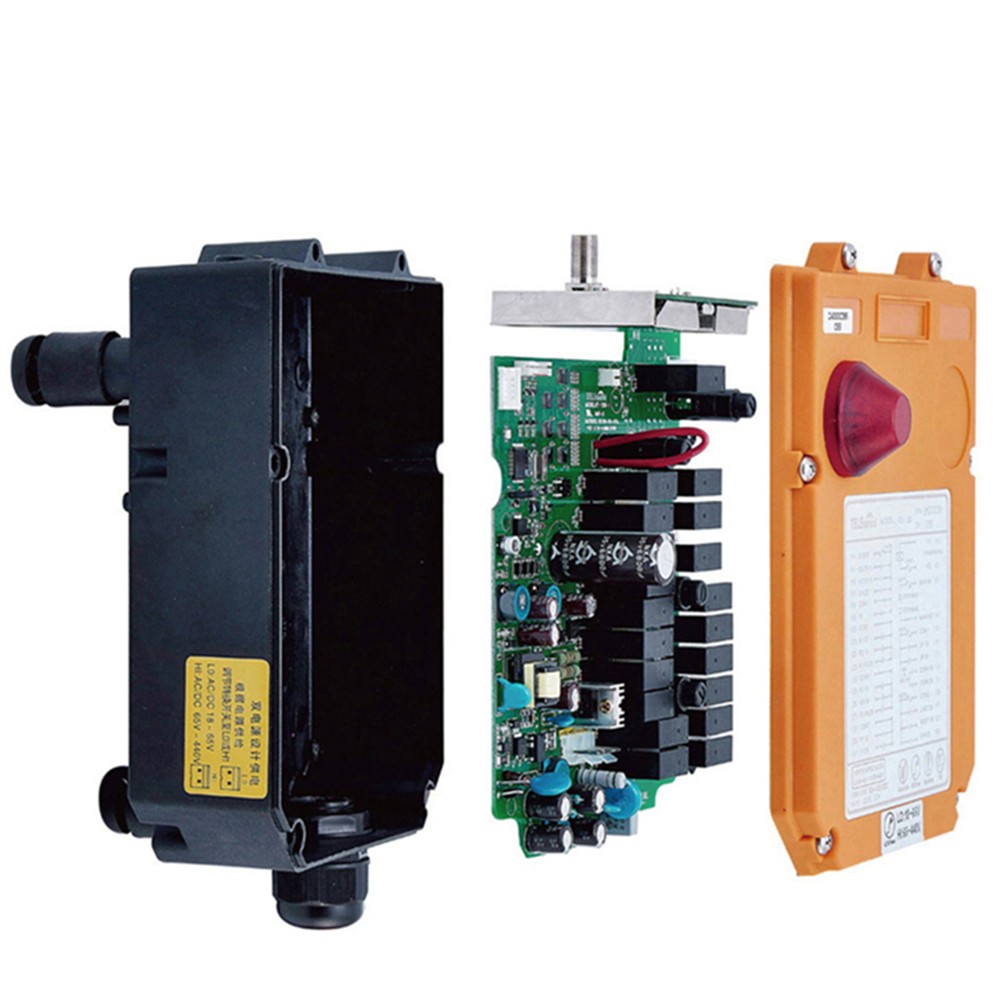

Receiver |
|
|
Receiver power supply |
12v/18-65V AC/DC Please select the voltage you need |
|
Material |
Glass-Fiber PA |
|
Dimension |
168*166*93mm (6.6*6.5*3.7 in.) |
|
Weight |
780G |
|
Protection Class |
IP65 |
|
Temperature range |
-40~85 degrees Celsius (-40~185 degrees Fahrenheit) |
|
Frequency range |
VHF: 310~331MHz; UHF: 425~446MHz |
|
Receiver sensitivity |
-110dBm |
|
Cable length |
1.65 meters |
|
Safety code |
32 bits (4.3 billion) |
|
Control distance |
Approx100m (200 meters is customized) |
Features
l Up/down, East/ West, South/ North can be programmed to interlock or non-interlock.
l Transmitter and receiver labels use laser engraving technology. Waterproof, wear-resistant, clear writing, avoiding the important information is missing in harsh environments as codes and other issues. To provide more superior service for future use.
l Special button materials and high-quality switches
l Power supply alarm indicator
Features
l Up/down, East/ West, South/ North can be programmed to interlock or non-interlock.
l Transmitter and receiver labels use laser engraving technology. Waterproof, wear-resistant, clear writing, avoiding the important information is missing in harsh environments as codes and other issues. To provide more superior service for future use.
l Special button materials and high-quality switches
l Power supply alarm indicator
We also offer products in the voltage range of 65V~110V ~ 440V AC/DC. Contact us if needed. Select the appropriate product based on the operating voltage.
.jpg "1(263).jpg")
.jpg "2(181).jpg")
.jpg "3(126).jpg")
.jpg "4(69).jpg")
.jpg "5(32).jpg")
.jpg "6(27).jpg")
Note

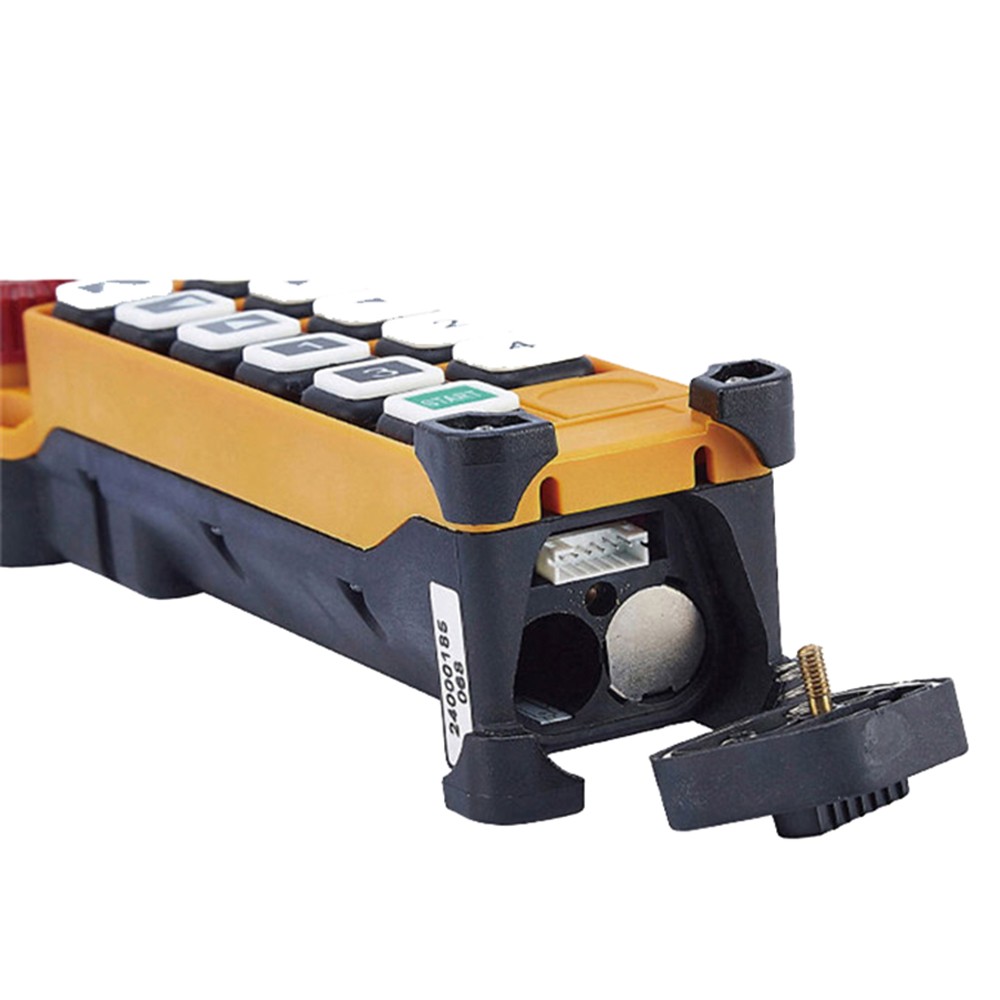

The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient and will flash red if the battery power is low. If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.
Our factory
