30mm RS232 15Kg 5μ/Pulse Motorized Linear Stages for Microscope/Flaw Detector

item ID#: PP110-30
  • Item condition: New and Original
  • 100 available/ 0 sold
  • Start from: 1 Unit(s)
  • Weight: 2 Kg(s)
  • DHL Recommended Shipping
  • Stock Lead Time
Delivery:
3-7 Days Details
Payment:
Details
Guarantee:
1Year Quality Assurance Details
Returns:
7 days unconditional return, the buyer bear the return freight Details

Estimate Shipping Costs

Quantity: Unit(s)
US$345.00 + Shipping Cost
    • Description
    • Download
    • Product Reviews
    • Write a Review
     30mm RS232 15Kg 5μ/Pulse Motorized Linear Stages  for Microscope/Flaw Detector


    High Precision Motorized Linear Stages:PP110-30

    Specifications

    (1) Low-profile, high-accuracy and apply to low bearing capacity, low speed.

    (2) The structure of crossed-roller bearing requires the precise movement.

    (3) Original position and limit switches are at both ends which can supply the precision positioning and protection.

    (4) Applies to use in single axis or assemble into multi-axis stage

    Item Number

    PP110-30

    PP110-50

    PP110-75

    Structure

    Travel Range

    30mm

    50mm

    75mm

    Platform

    90mm x 90mm

    90mm x 110mm

    90mm x 110mm

    Bearing Construction

    Grinding Lead Screw (1mm of leading)

    Travel Guide

    Crossed Roller Bearing

    Stepper Motor (1.8°)

    42BYG (Stepping Motor with 2-Phases & 1.8° of Step Angle)

    Material

    Aluminum Alloy - Black-Anodized

    Load Capacity

    15kgs

    20kgs

    Weight

    1.25kgs

    1.4kgs

    1.7kgs

    Accuracy

    Design Resolution

    5μm/Pulse, Non-MS Driver                                                                                                                                         0.25μm/Pulse, 20MS Driver

    Max Velocity

    10mm/sec

    Repeatability

    5μm

    Absolute Accuracy

    10μm

    Straightness

    8μm

    12μm

    Parallelization

    15μm

    Pitching

    25"

    Yawing

    20"

    Backlash

    2μm

    Others

    Optional Accessories

    Brake Function (-Z), Grating Scales (-G), Servo Motor (-D)



    3. Application

    Applications: Electronic equipment. Laser equipment. Automation equipment. CNC equipment. Laser equipment and other automation equipment.

    When selecting the electric rotary table and the electronic rotary table, you must first determine whether you need manual adjustment or motor control, and then determine the load size, displacement accuracy, resolution, desired dimensions, and quantity.

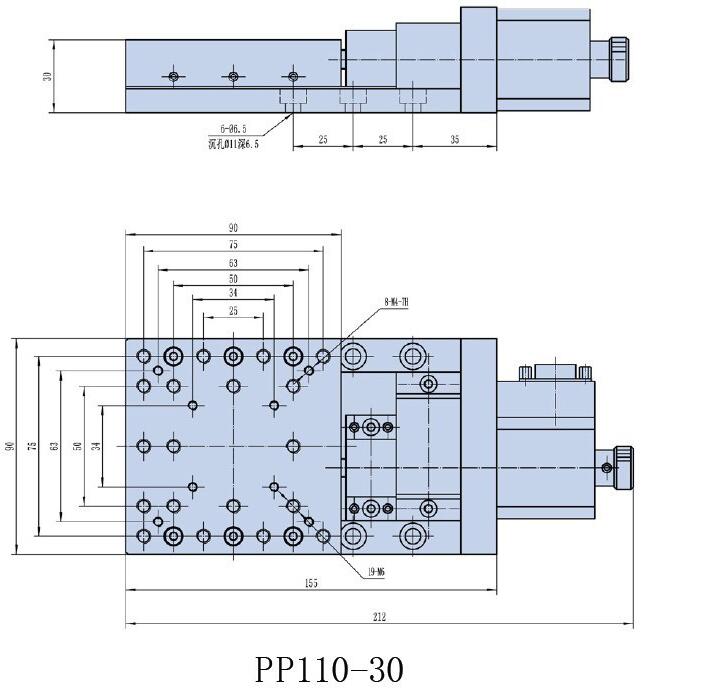

    PP110-30 (1).jpg

    PP110-30 (2).jpg

    PP110-30 (3).jpg
